swingarmclickerpressTW-20C

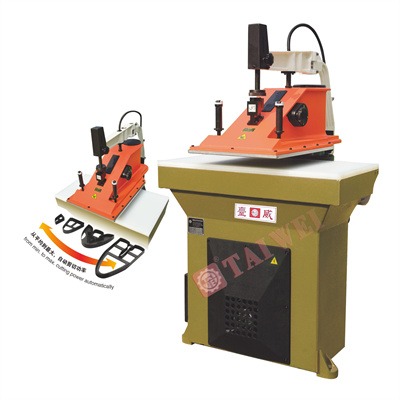

swing arm clicker press TW-20C




PRODUCT USE AND CHARACTERISTICS

· Automatic adjusting pressure system:Regardless of different sizes die-cuts

(same height).Ihere is no need to adjusting pressure,even if different hardness

Easy operation,higher productivity than conventional swing arm cutting presses

goes the same.

Save 50 percent of the cutting board costs

· Minimize operator's fatigue to the least

main technical specifications

Model

TW-20C

TW-9.1

TW-9.3S

Working Table Sizemm)

900 x 430

900 x 450

900 x 450

Arm Widthmm)

370

370

370

Maximum Cutting Forcet)

20196kN

22216kN

25245kN

Max. Strokemm)

90

90

90

Max. Travelmm)

125

125

125

Motor PowerkW)

0.751HP

0.751HP

0.751HP

Machine Sizemm)

900 x 1000 x 1710

900 x 1000 x 1710

900 x 1000 x 1710

N.W. With Oilkg)

660

910

910

N.W. With Packing Materialkg)

775

1030

1030



Model

TW-9.3

TW-9.4

TW-9.5

TW-9.6

Working Table Sizemm)

1000 x 500

1000 x 500

1000 x 500

1200 x 500

Arm Widthmm)

370

500

610

610

Maximum Cutting Forcet)

25245kN

25245kN

25245kN

22216kN

Max. Strokemm)

90

90

90

90

Max. Travelmm)

125

125

125

125

Motor PowerkW)

0.751HP

0.751HP

0.751HP

0.751HP

Machine Sizemm)

1000 x 1140 x 1710

1000 x 1160 x 1710

1000 x 1160 x 1710

1200 x 1160 x 1710

N.W. With Oilkg)

1020

1060

1080

1100

N.W. With Packing Materialkg)

1150

1190

1210

1230
