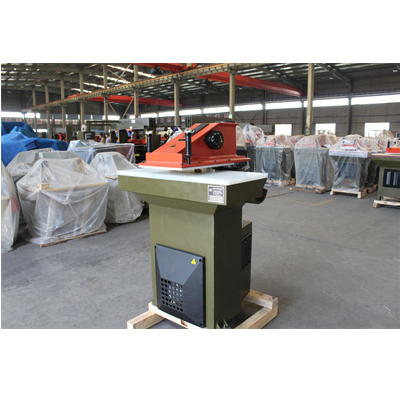

craft cutting machine TW-925S(3+1)
1.The machine is applicable to cutting of various nonmetal materials by die cutter.
2.The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
3.High speed and low energy consumption. With only power of 0.75KW , it can output the cutting force of 28T.
4. To meet the need of frequent replacement of die cutters of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
main technical specifications
|
Model |
TW-925S(1+1) |
TW-928(1+1) |
TW-928L(1+1) |
TW-928M(1+1) |
|
TW-925S(3+1) |
TW-928(3+1) |
TW-928L(3+1) |
TW-928M(3+1) |
|
|
Working Table Size（mm) |
1000 x 500 |
1000 x 500 |
1000 x 500 |
1200 x 500 |
|
Swing Arm Width（mm) |
370 |
500 |
610 |
500 |
|
Cutting Force（t） |
25(28) |
25(28) |
25(28) |
22(28） |
|
Cutting Stroke（mm) |
90 |
90 |
90 |
90 |
|
Motor Power（kW） |
0.75（1HP） |
0.75（1HP） |
0.75（1HP） |
0.75（1HP） |
|
Net Weight（with oil）(kg) |
990 |
1030 |
1050 |
1060 |
|
Gross Weight（kg） |
1120 |
1160 |
1180 |
1200 |
