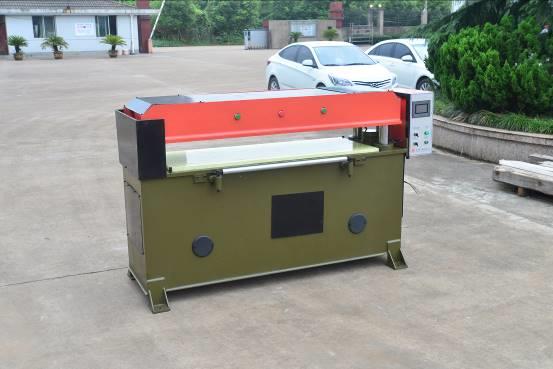

leather cutting press die press machine beam press TWX-540P
How do you use a leather die cutter?
1. put the die cutter in hard flat plate like Metal Marbo, blame upward. ...
2. Put down the Leather on the die cutter blame, the front surface faced down.
3. Using a wood hammer or the Bakelite cylinder (option purchased from my shop) hit on the back surface of the leather, from one side to other side.
main technical specifications
|
Model |
TWX-530P |
TWX-540P |
TWX-550P |
|
TW-530P |
TW-540P |
TW-550P |
|
|
Max. Cutting Force（ton） |
30（249kN） |
40（392kN） |
50（490kN） |
|
Travel（mm） |
50-150 |
50-150 |
50-150 |
|
50-200 |
50-200 |
50-200 |
|
|
Working Table Size（mm） |
1250 x 500 |
1250 x 600 |
1250 x 800 |
|
1600 x 500 |
1600 x 600 |
1600 x 800 |
|
|
Main Motor Power（kW） |
2.2 |
3 |
4 |
|
Weight(approx)（kg） |
2100 |
2250 |
3100 |
|
2480 |
3500 |
|
Model |
TWX-560P |
TWX-580P |
TWX-5100P |
|
TW-560P |
TW-580P |
TW-5100P |
|
|
Max. Cutting Force（ton） |
60（588kN） |
80（784kN） |
100（980kN） |
|
Travel（mm） |
50-150 |
50-150 |
50-150 |
|
50-200 |
50-200 |
50-200 |
|
|
Working Table Size（mm） |
1250 x 900 |
1250 x 900 |
1250 x 900 |
|
1600 x 900 |
1600 x 900 |
1600 x 900 |
|
|
Main Motor Power（kW） |
4 |
5.5 |
7.5 |
|
Weight(approx)（kg） |
3300 |
4500 |
5100 |
|
3700 |
4800 |
5500 |
Note:If working talbe is more than 1500x1000mm,it is recommended to use precision six-column four cylinder structure.
