BeamCuttingMachineWithRecedingBeam

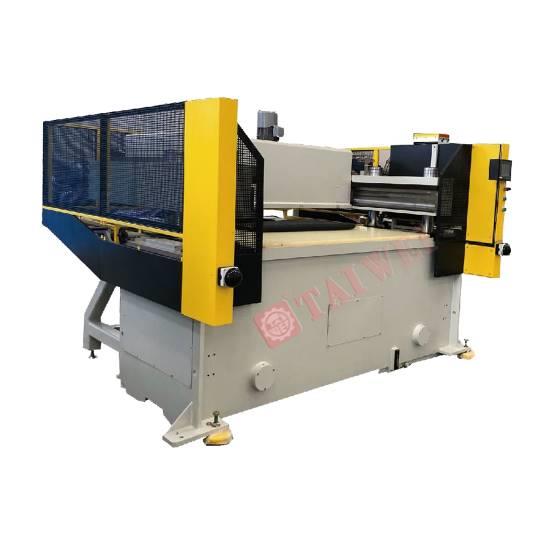

Beam Cutting Machine With Receding Beam






PRODUCT USE AND CHARACTERISTICS



·Four-column cutting machine designed in a very solld welded steel

construction.Extremely durable and warp-resistant.

·The machine is equipped with a receding beam and possibility to cut roll and

plate material. The control system guarantees an easy and very usor-friendly

handling.Also low point stopper are installed as standard.

· Can achieve the function of half cutting,high precision.











main technical specifications

Model

RCB 160T

RCB 130T

RCB 60T

Max. Cutting Forceton

160 (1600kN)

130 (1300 kN)

60 (600 kN)

Working Table Sizemm

2000×1000

1700×900

1700×900

Travelmm

60-185

60-185

60-185

Working VoltapekW

220V240V.380V415V440V/50H260Hz

220V240V.380V415V440V/50H260Hz

220V240V.380V415V440V/50H260Hz

Storkemm

20-160

20-160

20-160





Beam Cutting Machine,200 ton clicker press,Beam Cutting Machine With Receding Beam
