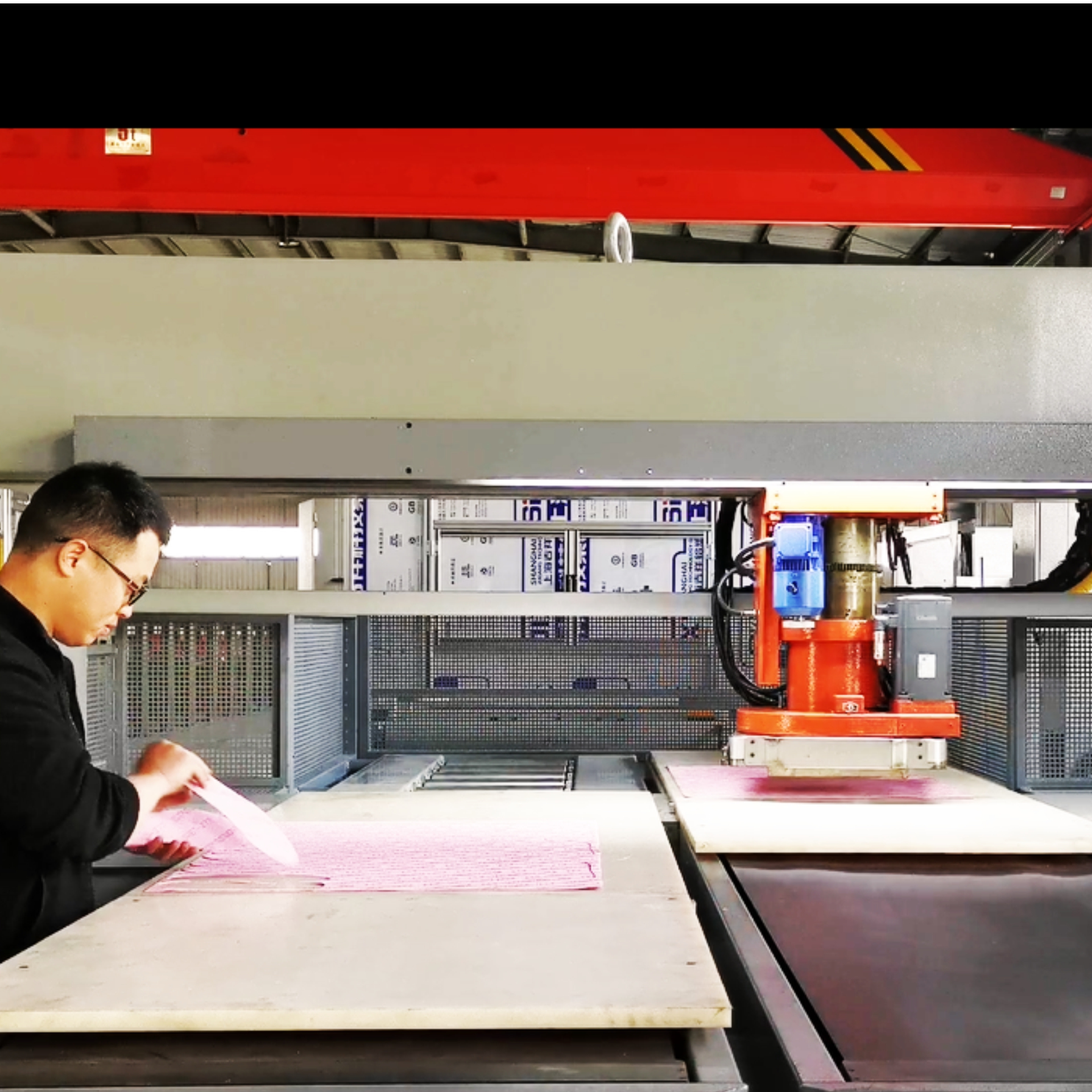

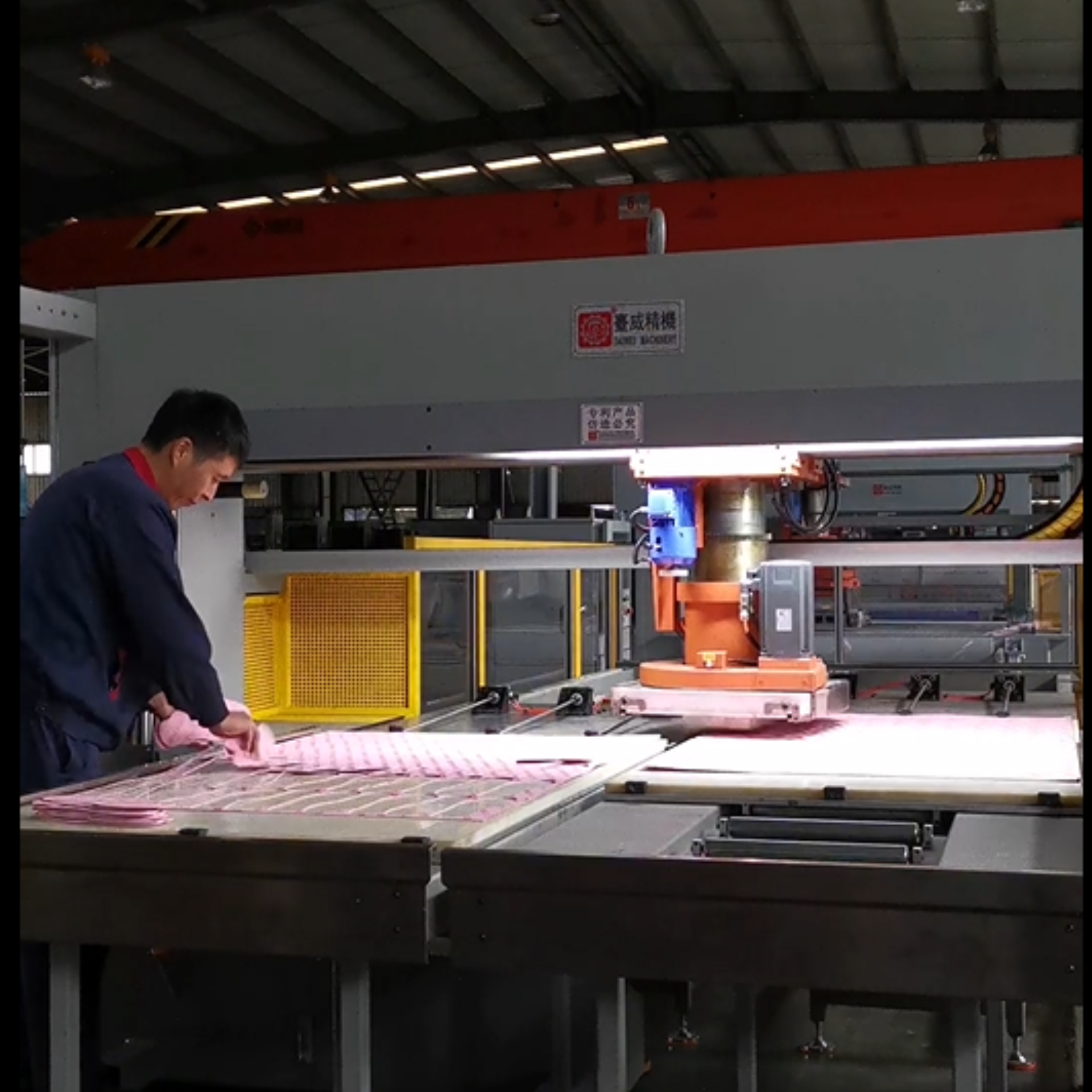

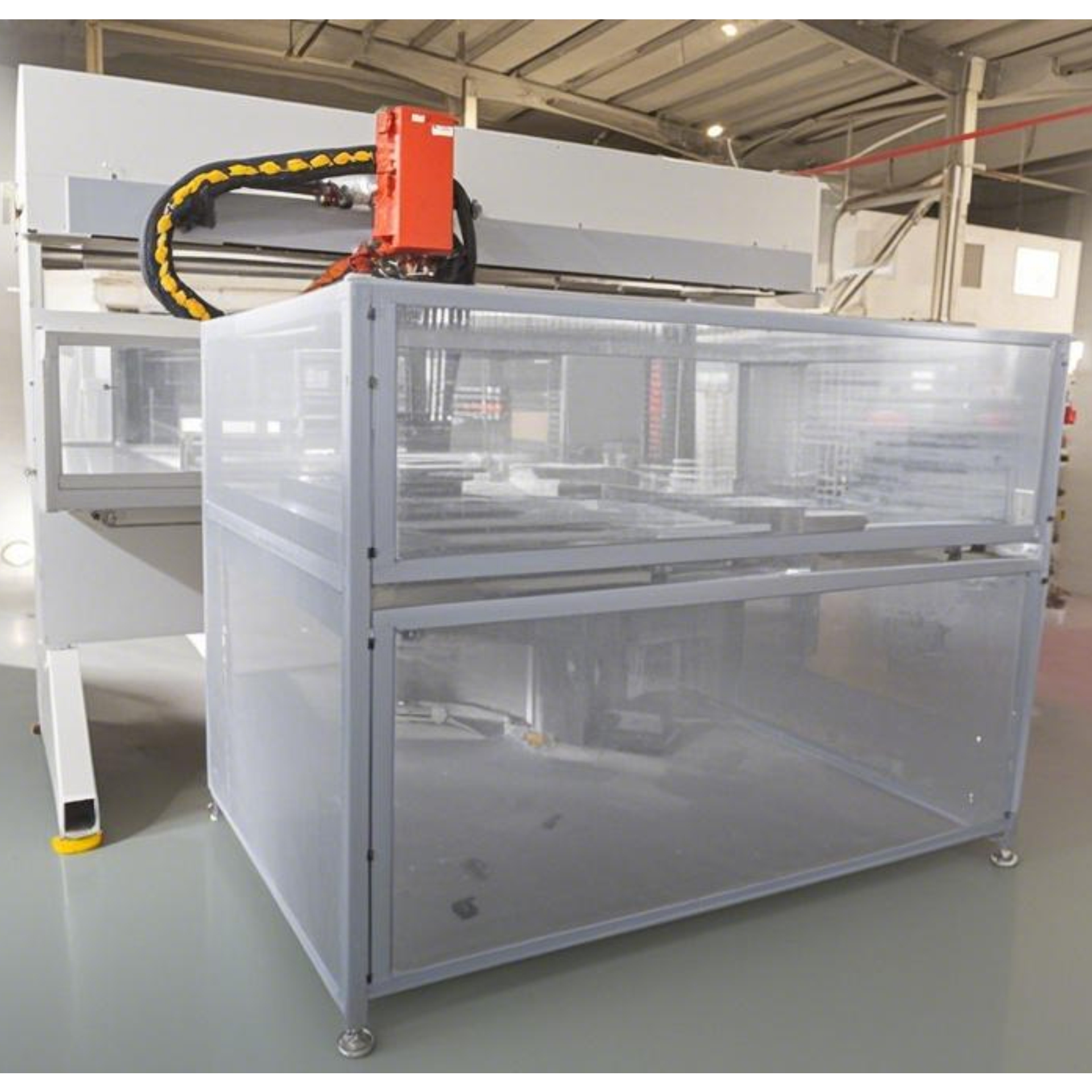

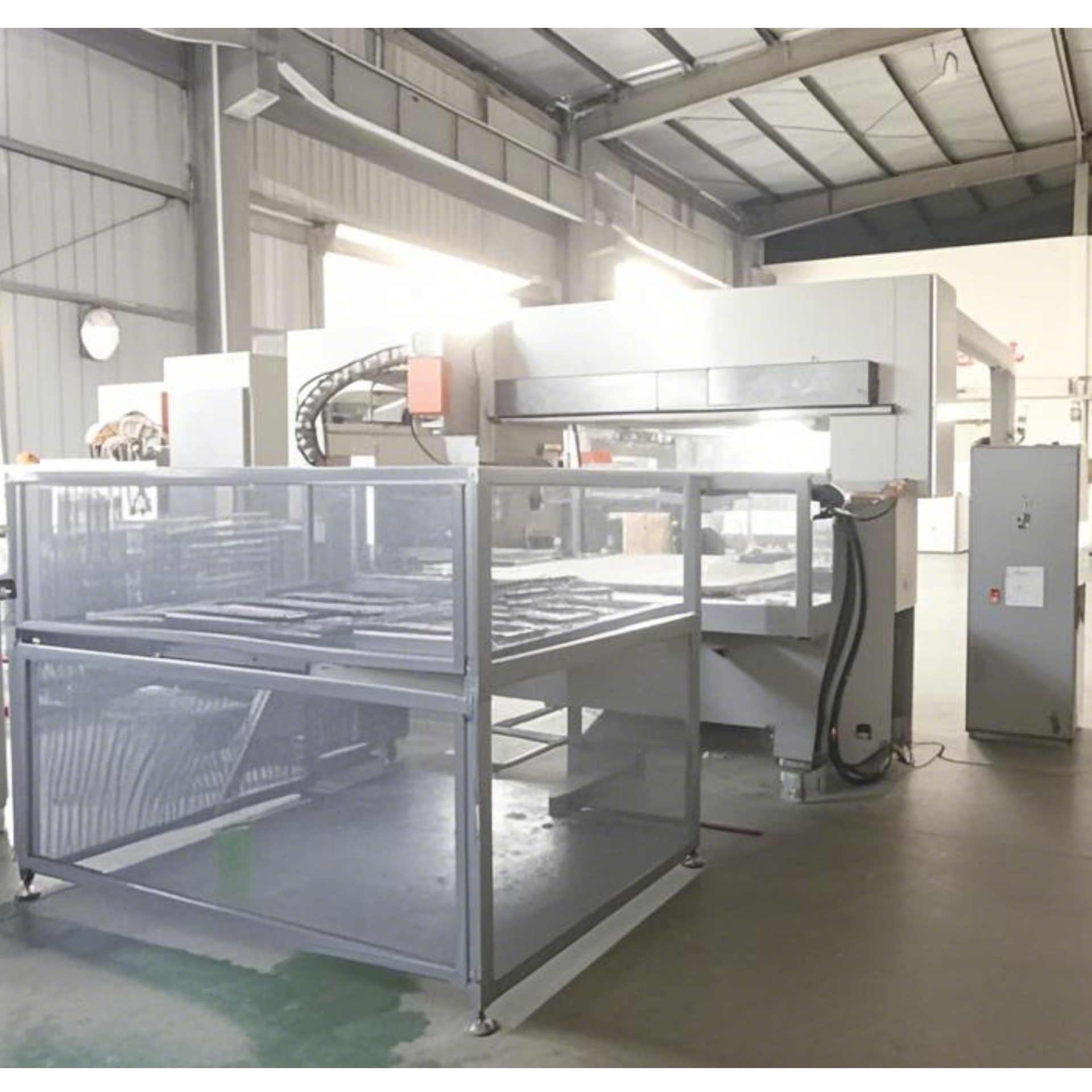

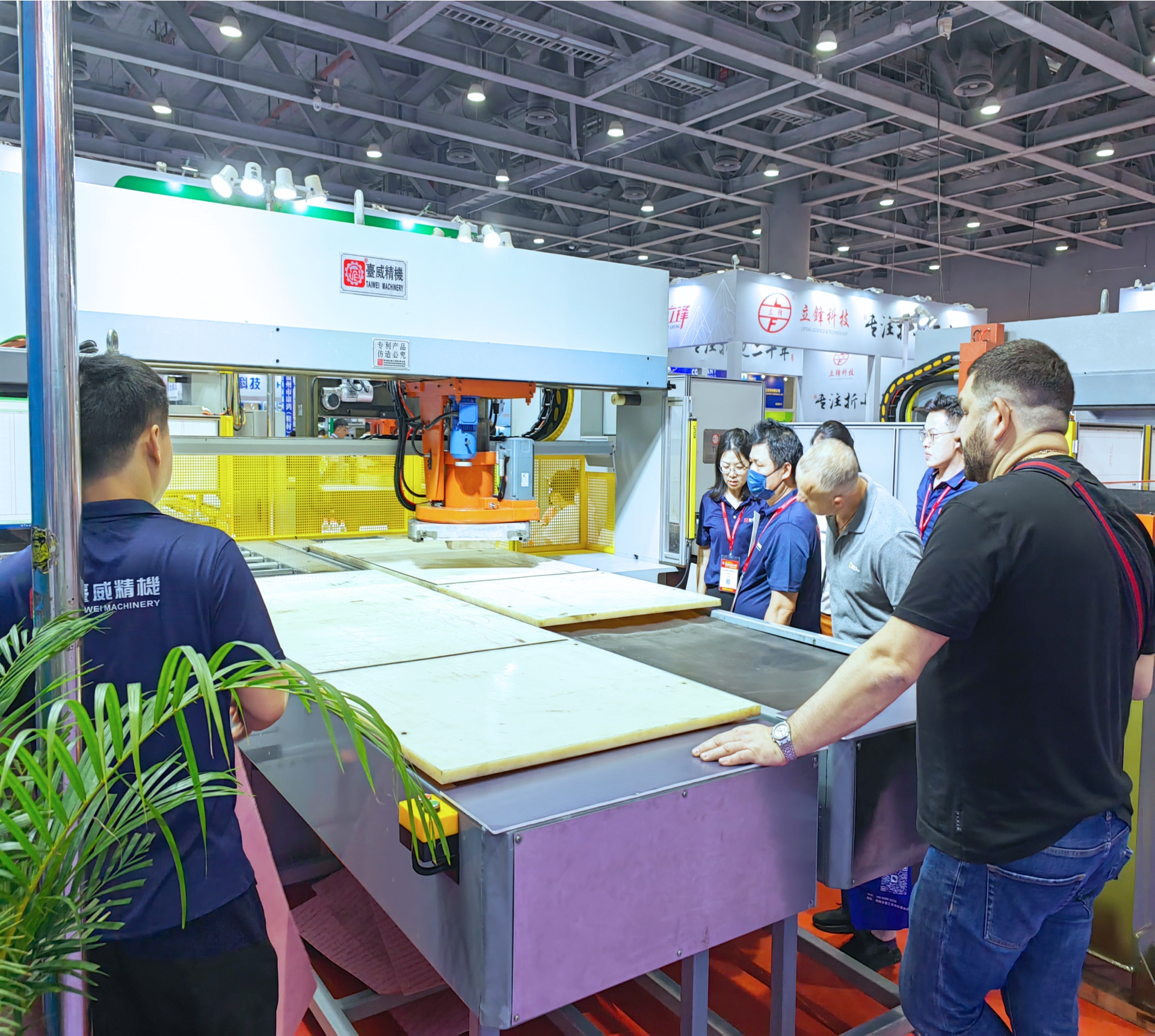

Product Name: High-speed intelligent CNC push-plate punching machine (double-station alternating)

product model: TW-535DBD





product features:


1, suitable for blanking all kinds of non-metallic sheet materials, especially suitable for the bottom plate, Hong Kong treasure, rubber materials in the footwear industrymass blanking.
2. Double-station feeding is carried out alternately, without stopping the work, saving labor and materials.
3. When blanking the middle floor, each material can be 1-3 more than manual blanking, with obvious advantages in cost reduction and efficiency enhancement.

Main technical parameters




Model

TW-535DBD

maximum pressure

35 ton/343 kN

Cutting head size

540 x 500mm

working width

1500mm

Belt/push plate width

1800mm

distance moved (center to center)

0-1500mm

Maximum feeding width

0-700

Moving head rotation angle

0 °-360 °

Maximum moving speed (X-axis)

916-mm/s

Maximum feeding speed (Y axis)

666 mm/s

Maximum rotation speed of moving head (Z-axis)

720°/s

X-axis and Y-axis positioning error

0.3mm

Z-axis positioning error

± 0 ° 20

Maximum travel

175mm

Cutting speed: drop, cut, pick up

420-54-353mm/s

shaft motor torque

7.5 Nm Brushless

Oil pump motor power

4 kW -5.5HP

Air pressure requirements

7-10 bar - 200 lt/min



10 kW

Dimensions

3200×4467×2308mm

Weight

4600kg
